DynaLoc™ Type 2 Outdoor Magazine

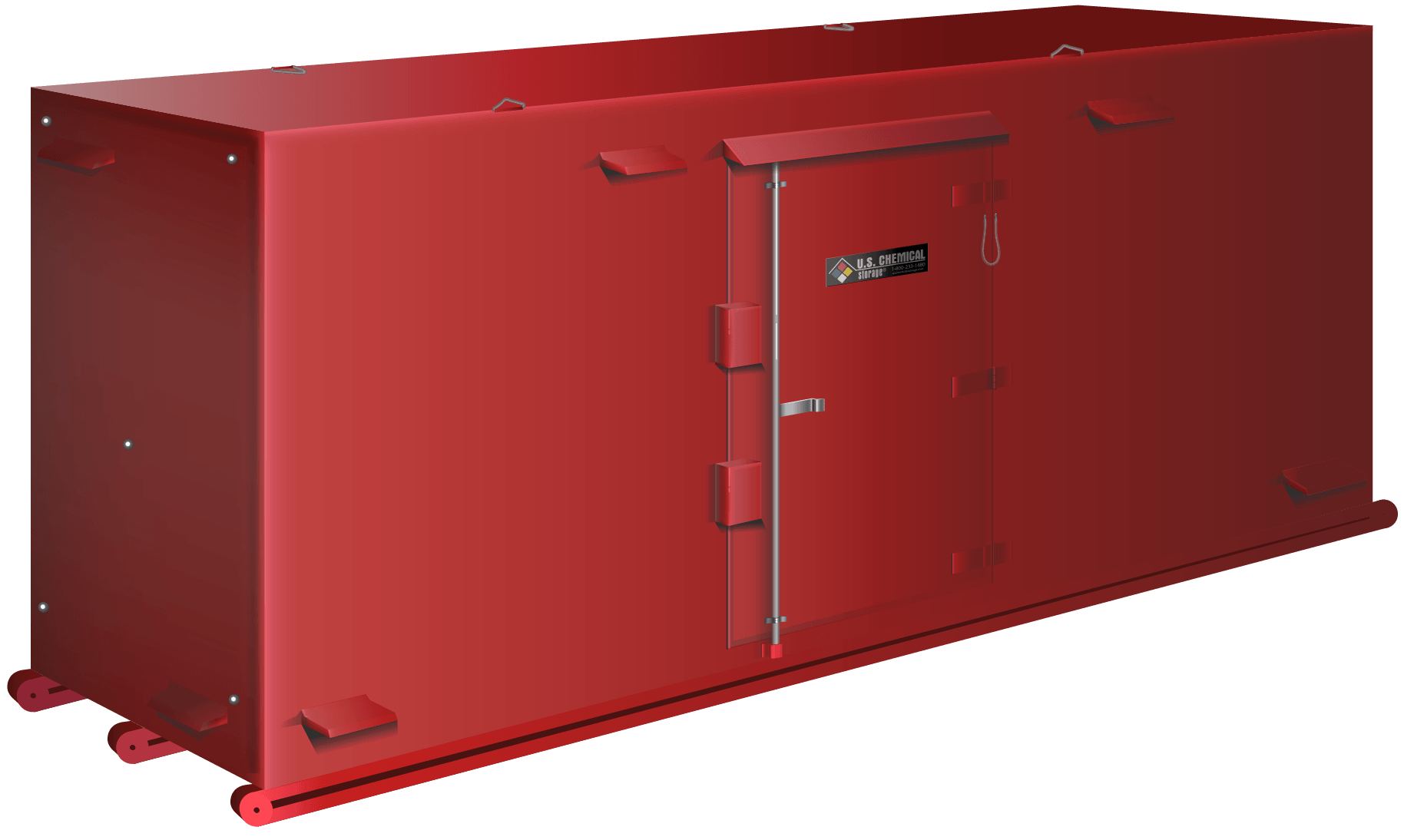

type 2 outdoor magazine storage unit from U.S. Chemical Storage
U.S. Chemical Storage engineers durable Type 2 portable outdoor magazine for your high explosives. Each explosive storage magazine features ¼-inch steel plate construction lined with 3 inches of non-sparking hardwood and a double-locking door system.

Features & Benefits

  • Weather-resistant
  • Theft-resistant
  • Bullet-resistant
  • Airflow vents with steel hoods provide adequate ventilation
  • Open channel construction
  • Plate steel construction
  • Secure double locking door system with ¼-inch steel hood features hinges and hasps welded to door – cannot be removed when the door is closed and locked
  • Static grounding system prevents direct contact with the ground, meeting NFPA 70
  • Interior and exterior surfaces protected with high-performance two-part epoxy primer and polyurethane topcoat for resistance to chemicals, exterior abrasion, corrosion and UV
  • 30 standard models
  • types of magazines provided for Type 2 explosives
  • Many models include forklift pockets for easy relocation

Compliance

All magazines meet and exceed:
  • ATF 27 CFR, Part 555.208

Common Applications

  • Military/law enforcement explosive and ammunition storage
  • Municipal explosive and ammunition storage
  • Contractor explosive and ammunition storage

Downloadable Information & Fact Sheets

Features


Exterior Dimensions: L x W x H

Diagram of a bright red explosive storage magazine with height, width, and length directions


Type 2 Outdoor Storage Magazine Sizes

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 36 x 36 x 36 in (LxWxH)
Dimensions Interior: 29.5 x 29.5 x 32 in
Approximate Weight: 1160 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 42 x 42 x 36 in (LxWxH)
Dimensions Interior: 35.5 x 35.5 x 32 in
Approximate Weight: 1395.71 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 42 x 42 x 42 in (LxWxH)
Dimensions Interior: 35.5 x 35.5 x 38 in
Approximate Weight: 1540.75 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 48 x 48 x 48 in (LxWxH)
Dimensions Interior: 41.5 x 41.5 x 44 in
Approximate Weight: 1979.57 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 60 x 48 x 48 in (LxWxH)
Dimensions Interior: 53.5 x 41.5 x 44 in
Approximate Weight: 2274 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 72 x 48 x 48 in (LxWxH)
Dimensions Interior: 65.5 x 41.5 x 44 in
Approximate Weight: 2723.39 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 66 x 60 x 60 in (LxWxH)
Dimensions Interior: 59.5 x 53.5 x 56 in
Approximate Weight: 3346.48 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 60 x 48 x 84 in (LxWxH)
Dimensions Interior: 53.5 x 41.5 x 80 in
Approximate Weight: 3522.12 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 60 x 60 x 84 in (LxWxH)
Dimensions Interior: 53.5 x 53.5 x 80 in
Approximate Weight: 3983.35 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 72 x 72 x 72 in (LxWxH)
Dimensions Interior: 65.5 x 65.5 x 68 in
Approximate Weight: 4468.28 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 72 x 72 x 96 in (LxWxH)
Dimensions Interior: 65.5 x 65.5 x 92 in
Approximate Weight: 5454.05 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 84 x 66 x 84 in (LxWxH)
Dimensions Interior: 77.5 x 59.5 x 80 in
Approximate Weight: 5213.44 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 84 x 84 x 84 in (LxWxH)
Dimensions Interior: 77.5 x 77.5 x 80 in
Approximate Weight: 6006.33 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 96 x 84 x 84 in (LxWxH)
Dimensions Interior: 89.5 x 77.5 x 80 in
Approximate Weight: 6592 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 132 x 84 x 84 in (LxWxH)
Dimensions Interior: 126 x 77.5 x 80 in
Approximate Weight: 8411.41 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 144 x 84 x 84 in (LxWxH)
Dimensions Interior: 138 x 77.5 x 80 in
Approximate Weight: 9011.22 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 168 x 84 x 84 in (LxWxH)
Dimensions Interior: 162 x 77.5 x 80 in
Approximate Weight: 10139.02 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 144 x 96 x 90 in (LxWxH)
Dimensions Interior: 138 x 89.5 x 86 in
Approximate Weight: 10130.11 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 192 x 84 x 84 in (LxWxH)
Dimensions Interior: 186 x 77.5 x 80 in
Approximate Weight: 11303 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 240 x 84 x 84 in (LxWxH)
Dimensions Interior: 234 x 77.5 x 80 in
Approximate Weight: 13594.25 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 264 x 84 x 84 in (LxWxH)
Dimensions Interior: 258 x 77.5 x 80 in
Approximate Weight: 14722.06 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 240 x 96 x 90 in (LxWxH)
Dimensions Interior: 234 x 89.5 x 86 in
Approximate Weight: 15157.95 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 240 x 96 x 96 in (LxWxH)
Dimensions Interior: 234 x 89.5 x 92 in
Approximate Weight: 15733 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 288 x 96 x 96 in (LxWxH)
Dimensions Interior: 282 x 89.5 x 92 in
Approximate Weight: 18328.85 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 336 x 96 x 96 in (LxWxH)
Dimensions Interior: 330 x 89.5 x 92 in
Approximate Weight: 21016.58 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 384 x 96 x 96 in (LxWxH)
Dimensions Interior: 378 x 89.5 x 92 in
Approximate Weight: 23612.62 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 432 x 96 x 96 in (LxWxH)
Dimensions Interior: 426 x 89.5 x 92 in
Approximate Weight: 26208.65 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 480 x 96 x 96 in (LxWxH)
Dimensions Interior: 474 x 89.5 x 92 in
Approximate Weight: 28805 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 480 x 120 x 96 in (LxWxH)
Dimensions Interior: 474 x 114 x 89 in
Approximate Weight: 33367.96 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 480 x 120 x 120 in (LxWxH)
Dimensions Interior: 474 x 114 x 113 in
Approximate Weight: 37474.32 lbs.


Other Types of Explosive Storage Magazines

DynaLoc™ Type 2 Indoor Magazine

DynaLoc™ Type 2 Indoor Magazine

For storing high explosives (up to 50 lbs.) inside your facility. Front-open (cabinet) and top-open styles available. The portable steel construction-lined hardwood storage magazines keeps your explosive components or ammunition secure and safe.

VIEW
DynaLoc™ Type 3 Day box for Explosives

DynaLoc™ Type 3 Daybox for Explosives

Use Type 3 storage magazines, also known as “dayboxes,” for the transfer and temporary, supervised storage of explosives.

VIEW
A red DynaLoc Explosive Magazine from US Chemical Storage with cam-lock latch closure and double-lock hood for security

DynaLoc™ Type 4 Explosive Magazine for Low Explosives

For indoor or outdoor, long-term storage of low explosives. All include forklift pockets and crane lifting rings to easily move or relocate.

VIEW

FAQs

1. Do I need a foundation for my explosive storage?

It is not necessary to place your explosive storage container on a specific type of foundation. However, a foundation such as concrete can help to provide a truly level surface. Be sure to check your local guidelines to determine if any footer is required.

2. Does my explosive storage need to be grounded?

Yes. High and low explosives that are placed in outdoor magazines should have a grounding system according to the NFPA 70 standard. Grounding protects your magazine and its contents against lightning strike, and it will need to be properly grounded by a licensed electrician. For more information, please refer to NFPA .

3. Can DynaLoc magazines be customized?

Yes. Like all our safe storage buildings, U.S. Chemical Storage can provide custom explosive storage magazines to fit your needs. For assistance creating a custom solution for your storage needs, contact one of our experts.
